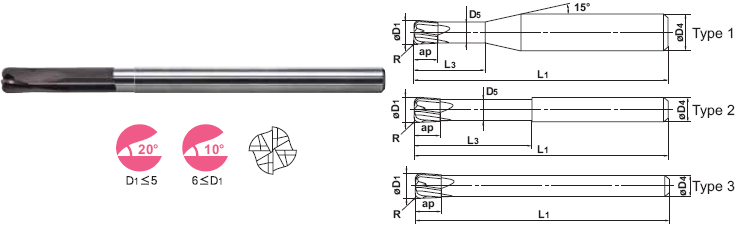

TYPE 1-2-3   Part No.* D1 R ap L3 D5 L1 D4 N Type PT-D02R050N06 2 0.5 2 6 1.9 50 6 4 1 PT-D02R050N10 2 0.5 2 10 1.9 70 6 4 1 PT-D03R075N09 3 0.75 3 9 2.9 50 6 4 1 PT-D03R075N15 3 0.75 3 15 2.9 70 6 4 1 PT-D04R100N12 4 1 4 12 3.9 50 6 4 1 PT-D04R100N20 4 1 4 20 3.9 70 6 4 1 PT-D05R120N15 5 1.2 5 15 4.9 70 6 4 1 PT-D06R150N18 6 1.5 6 18 5.85 50 6 4 2 PT-D06R150N30 6 1.5 6 30 5.85 90 6 4 2 PT-D07R150A050 7 1.5 7 - 0 50 6 4 3 PT-D07R150A080 7 1.5 7 - - 80 6 4 3 PT-D08R200N24 8 2 8 24 7.85 60 8 4 2 PT-D08R200N40 8 2 8 40 7.85 90 8 4 2 PT-D09R200A065 9 2 9 - - 65 8 4 3 PT-D09R200A100 9 2 9 - - 100 8 4 3 PT-D10R200N30 10 2 10 30 9.7 70 10 4 2 PT-D10R200N50 10 2 10 50 9.7 100 10 4 2 PT-D11R200A070 11 2 11 - - 70 10 4 3 PT-D11R200A110 11 2 11 - - 110 10 4 3 PT-D12R300N36 12 3 12 36 11.7 75 12 4 2 PT-D12R300N60 12 3 12 60 11.7 110 12 4 2 PT-D13R200A120 13 3 13 - 0 120 12 4 3 PT-D13R300A075 13 3 13 - - 75 12 4 3 PT-D16R300N80 16 3 16 80 15.5 140 16 4 2 *For NANOMITE® please add "N" to the beginning of the product code - For DINOMITE® please add "D" to the beginning of the product code

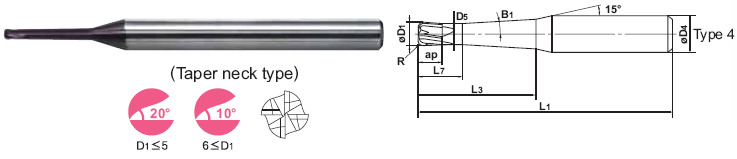

TYPE 4   Part No.* D1 R ap B1 L7 L3 D5 L1 D4 N Type PT-D02R050N12 2 0.5 2 1 4 12 1.9 70 6 4 4 PT-D02R050N16 2 0.5 2 1 4 16 1.9 70 6 4 4 PT-D02R050N20 2 0.5 2 1 4 20 1.9 70 6 4 4 PT-D03R075N18 3 0.75 3 1 6 18 2.9 80 6 4 4 PT-D03R075N24 3 0.75 3 1 6 24 2.9 80 6 4 4 PT-D03R075N30 3 0.75 3 1 6 30 2.9 80 6 4 4 PT-D04R100N24 4 1 4 1 8 24 3.9 90 6 4 4 PT-D04R100N32 4 1 4 1 8 32 3.9 90 6 4 4 PT-D04R100N40 4 1 4 1 8 40 3.9 90 6 4 4 PT-D05R120N30 5 1.2 5 1 8 30 4.9 90 6 4 4 PT-D05R120N40 5 1.2 5 1 8 40 4.9 90 8 4 4 PT-D05R120N50 5 1.2 5 1 8 50 4.9 110 8 4 4 PT-D06R150N50 6 1.5 6 1 16 50 5.85 110 8 4 4 PT-D06R150N67 6 1.5 6 1 16 67 5.85 130 8 4 4 PT-D08R200N70 8 2 8 1 18 70 7.85 120 10 4 4 PT-D08R200N90 8 2 8 1 18 90 7.85 150 12 4 4 PT-D10R200N110 10 2 10 1 20 110 9.7 160 16 4 4 PT-D10R200N80 10 2 10 1 20 80 9.7 140 16 4 4 PT-D12R300N110 12 3 12 1 24 110 11.7 160 16 4 4 *For NANOMITE® please add "N" to the beginning of the product code - For DINOMITE® please add "D" to the beginning of the product code
- 1" CUTTING DEPTH - Part No. Diameter Inches Diameter MM PT1-00012 1/2" 12.7 PT1-00916 9/16" 14.3 PT1-00058 5/8" 15.9 PT1-01116 11/16" 17.5 PT1-00034 3/4" 19 PT1-01316 13/16" 20.6 PT1-00078 7/8" 22.2 PT1-01516 15/16" 23.8 PT1-10000 1" 25.4 PT1-10116 1 1/16" 27 PT1-10018 1 1/8" 28.6 PT1-10316 1 3/16" 30.2 PT1-10014 1 1/4" 31.8 PT1-10516 1 5/16" 33.3 PT1-10038 1 3/8" 34.9 PT1-10716 1 7/16" 36.5 PT1-10012 1 1/2" 38.1 PT1-10916 1 9/16" 39.7 PT1-10058 1 5/8" 41.3 PT1-10034 1 3/4" 44.5 PT1-10078 1 7/8" 47.6 PT1-11516 1 15/16" 49.2 PT1-20000 2" 50.8   - 2" CUTTING DEPTH - Part No. Diameter Inches Diameter MM PT2-00012 1/2" 12.7 PT2-00916 9/16" 14.3 PT2-00058 5/8" 15.9 PT2-01116 11/16" 17.5 PT2-00034 3/4" 19 PT2-01316 13/16" 20.6 PT2-00078 7/8" 22.2 PT2-01516 15/16" 23.8 PT2-10000 1" 25.4 PT2-10116 1 1/16" 27 PT2-10018 1 1/8" 28.6 PT2-10316 1 3/16" 30.2 PT2-10014 1 1/4" 31.8 PT2-10516 1 5/16" 33.3 PT2-10038 1 3/8" 34.9 PT2-10716 1 7/16" 36.5 PT2-10012 1 1/2" 38.1 PT2-10916 1 9/16" 39.7 PT2-10058 1 5/8" 41.3 PT2-10034 1 3/4" 44.5 PT2-10078 1 7/8" 47.6 PT2-11516 1 15/16" 49.2 PT2-20000 2" 50.8 PT2-11316 1 13/16" 46
